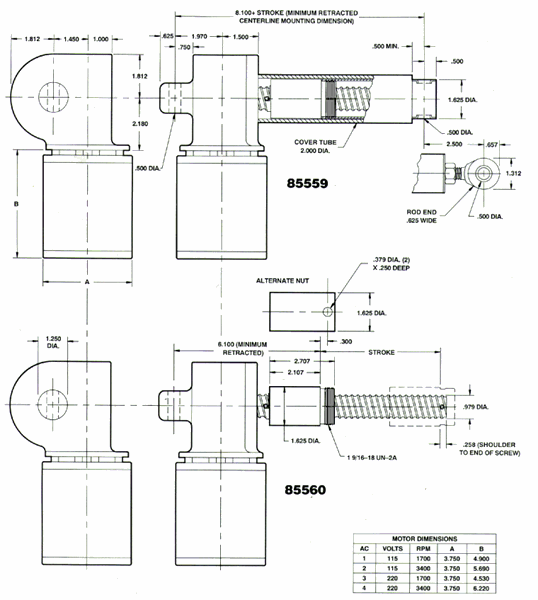

The Motion 85559/85560 Linear Actuator with load capacity up to 1500 lbs.

It also has integral freewheeling at stroke ends to eliminate limit switches. Both 115 VAC and 220 VAC motors are available. The 85559 uses a translating tube for mounting, while the 85560 is an open screw type unit where attachment is made directly to the ball nut.

Modify Configuration

Reset Cancel View Results
Item #
Item #
Model
85559 Model 85560 Model
Gear Ratio
26:1 52:1
Stroke Type Selection
Custom Stroke Stock Stroke
Custom Stroke (in)

Available Range: 1 to 72 By 0.001
Mounting Type

A Type 90° orientation

A Type
Mounting Hole Type
Custom Standard
Mounting Hole Size (in)

Available Range: 0.25 to 0.625 By 0.001

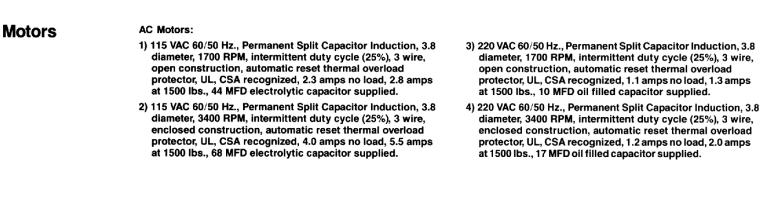

Motor Type
Motor Size
1 2 3 4
Rod End Option

No

Yes
Quantity

Available Range: 1 to infinity By 1
