• 85915/85916 Motion Linear Actuator
  • Gear Reducer
  • Ball Screw
  • Rod End

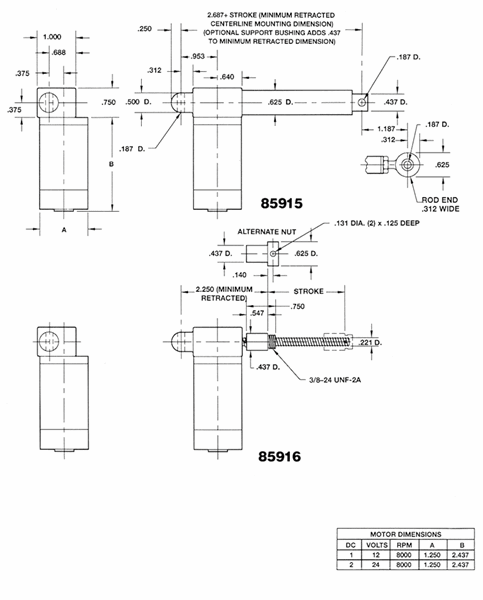

The Motion 85915/85916 Linear Actuator provides a miniature package for operating loads up to 40 lbs.

The basic construction incorporates the Motion Ball Screw which is a high efficiency .222 diameter Epicyclic Ball Screw with integral freewheeling at stroke ends to eliminate limit switches. Both 12 VDC and 24 VDC are available. The 85915 uses a translating tube for mounting, while the 85916 is an open screw type unit where attachment is made directly to the ball nut.

Modify Configuration

Reset Cancel View Results
Item #
Item #
Model
85915 Model 85916 Model
Gear Ratio
19:1 9.5:1
Stroke Type Selection
Custom Stroke Stock Stroke
Custom Stroke (in)

Available Range: 1 to 12 By 0.001
Mounting Type

A Type 90° orientation

A Type
Mounting Hole Type
Custom Standard
Mounting Hole Size (in)

Available Range: 0.187 to 0.253 By 0.001

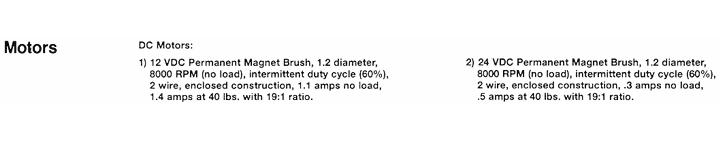

Motor Type
Motor Size
1 2
Rod End Option

No

Yes
Weather Proof Option

No

Yes
Quantity

Available Range: 1 to infinity By 1
